JSSCD-120NC/P CNC High Speed Circular Saw Machine (Horizontal-Push)
For demanding horizontal metal profile cutting operations, this CNC high-speed circular saw machine delivers superior performance with rapid cutting capability, sophisticated control, exceptional accuracy, and sustainable operation. Its robust construction makes it essential for modern metal fabrication workflows.
Enduring Accuracy and Robust Operation
The machine maintains sustained precision through innovative horizontal push cutting methodology, powered by an AC servo motor and ball screw assembly. Key features include:
- High-performance workholding system with hydraulic horizontal/vertical clamping
- Precision sustainment features including gear backlash mitigation and coordinated lubrication systems

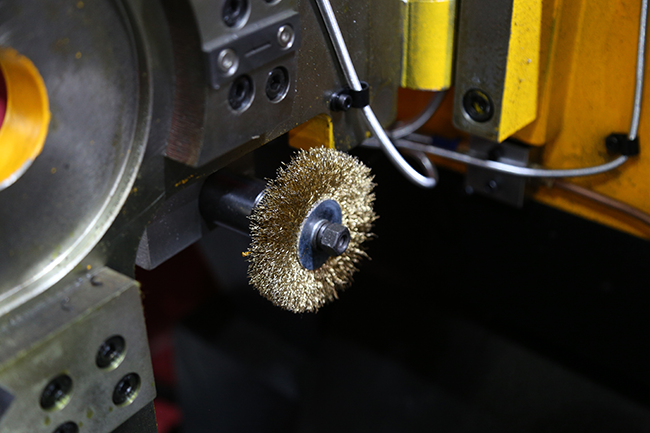

- Integrated saw blade chip extraction device for enhanced safety and maintenance
- Carbide-tipped workpiece separator for clean, orderly piece exit
Streamlined Control and Effortless Operation
The sophisticated CNC control system governs essential parameters like cutting velocity and angular positioning, paired with an intuitive operator interface (HMI) for straightforward control and production automation.
Technical Specifications
| Model |
Unit |
JSSCD-120NC/P |
| Mainframe dimensions |
mm |
2250*1800*1890 |
| Bar & round pipe |
mm |
20-120 |
| Angle bar & square bar |
mm |
20-95 |
| Saw blade size |
mm |
φ380*2.6*φ40 |
| Spindle motor power |
KW |
11(4P) |
| Spindle speed |
rpm |
20-140 |
| Feed servo motor power |
KW |
2 |
| Hydraulic drive motor power |
KW |
2.25(4p) |
| Rated pressure of the hydraulic system |
mpa |
5.5 |
Boosting Throughput with Automation
Optional high-capacity automatic material handling system facilitates uninterrupted, automated feeding, perfectly synchronizing with the machine's horizontal cutting action for extended batch runs.

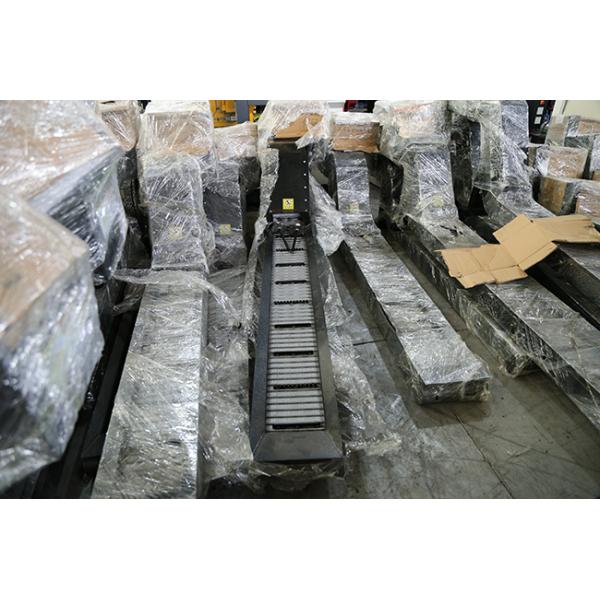

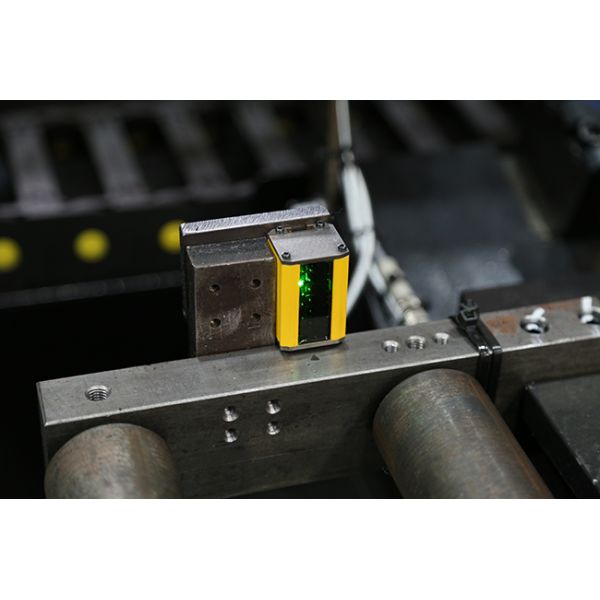

Product Images
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
You can send sample material for test cutting. We'll provide detailed cutting data and a video of the operation.
Q4: What is your method of transaction?
We use FOB (Free On Board) transaction terms.
Q5: How about your delivery time?
Typically 7-60 work days after order confirmation, depending on items and quantity.
Q6: How about the payment term?
T/T 30% deposit, 70% balance before shipment. Other methods available upon request.
Q7: Does the band saw blade have any international certifications?
Yes, we have obtained CE and ISO international certifications.
