JSSCD-GB42150 Band Saw Machine
Jiangsu Sakoside Intelligent Machinery Technology Co., Ltd. is a comprehensive industrial manufacturer specializing in the research, development, and production of band sawing machinery. Our GB series column band saw machines represent the pinnacle of our technological advancement, designed for precision cutting of metal, plastic, and alloy materials.
Key Features
- Increased Operational Efficiency: Higher cutting speeds with significant energy savings
- Heavy-Duty Construction: Reinforced transmission system and upgraded main drive motor for superior cutting power
- Enhanced Cutting Quality: Delivers excellent surface precision and finish, especially when used with specialized cutting fluids
- Extended Durability: Industrial-grade hard-chrome plated columns for wear resistance and dimensional stability
- Precision Control: Hydraulic lifting system with bearing-supported blade guides and adjustable tungsten steel guide plates
Technical Specifications
| Model |
Unit |
JSSCD-GB42150 |
| Machine size |
mm |
6700*2400*3800 |
| Square bar & angle bar capacity |
mm |
1500*1500 |
| Round pipe capacity |
mm |
φ1500 |
| Saw band speed |
m/min |
20-80 (Variable frequency stepless speed regulation) |
| Saw band size |
|
13480*80*1.6 |
| Main motor power |
kw |
18.5 |
| Hydraulic motor power |
kw |
5.5 |
| Cooling motor power |
kw |
4.5 |
| Hydraulic fluid capacity |
L |
100 |
| Cutting fluid capacity |
L |
60 |
| Saw band tension |
|
Hydraulic |
| Clamping method |
|
Hydraulic |
| Feeding method |
|
Pulley type/drum type |
| Feeding stroke |
mm |
1500 |

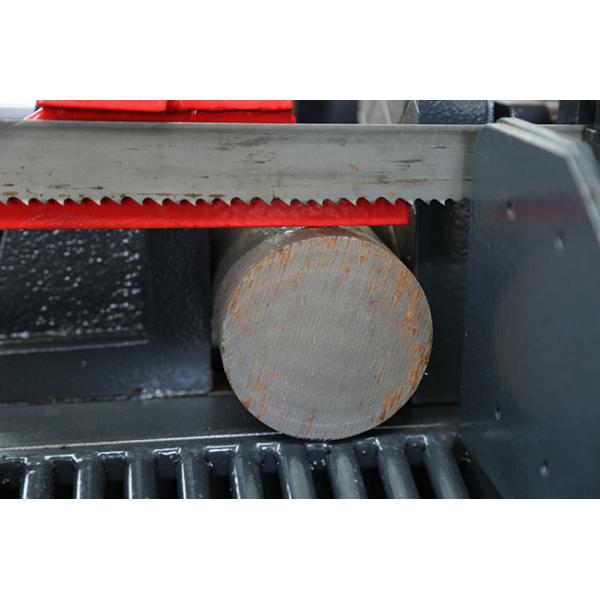

Product Images
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
You can send sample material for test cutting. We'll provide detailed cutting data and a video of the operation.
Q4: What is your method of transaction?
We use FOB (Free On Board) transaction terms.
Q5: What is your delivery time?
Typically 7-60 work days after order confirmation, depending on product type and quantity.
Q6: What are your payment terms?
30% deposit by T/T, with 70% balance paid before shipment. Other payment methods available upon request.
Q7: Does the band saw blade have any international certifications?
Yes, our products have obtained CE and ISO international certifications.
